(design no. 35) Dynamite
Although basicly a vintage design, we have modernised the plans on nearly all counts, during the last year.. The plans are customised for a couple who hopes to extents their cruising range into the polar regions. This is a go every where boat as the proto type...
| Specs | |||
|---|---|---|---|
| keel type: short fin |
hull: Steel |
hull section: S |
rig type: sloop |
| pilot house : opt. fixed dodge |
head room: 1.96 m |
# berths: 7 |
# heads: 1 |
| Dimensions | |||
|
length: 11.67 m |
loa: 12.15 m |
lwl: 9.30 m |
beam: 3.51 m |
| draft: 1.80 m |
displacement: 11.2 t |
ballast: 4400 kg. |
|

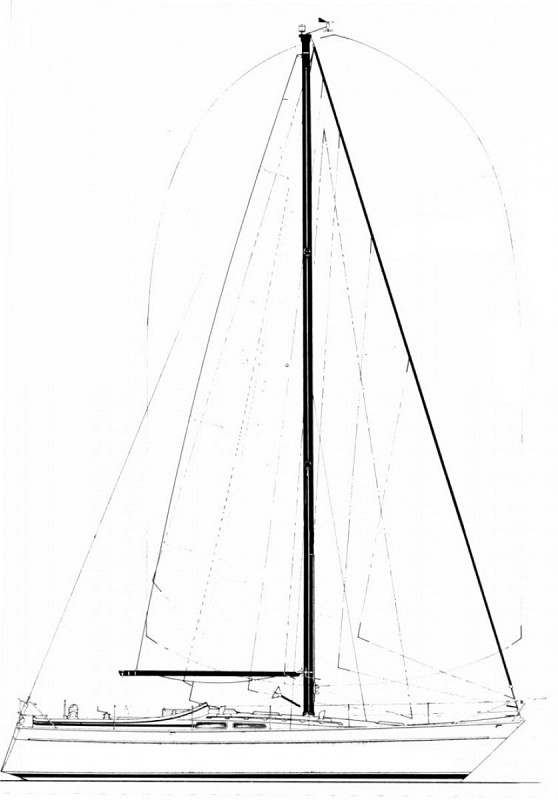

| Sails & Rig | |||
| sail area: 65.42 m 2 | E : 3.75 m | P : 13.75 m | I : 15.40 m |
| J : 4.66 m | |||
| Engine | |||
| Nanni N4.38 | power: 38 hp | ||
read our legal disclaimer
Although basicly a vintage design, we have modernised the plans on nearly all counts, during the last year..
The plans are customised for a couple who hopes to extents their cruising range into the polar regions.
This is a go every where boat as the proto type allready proved.
