(design no. 113) True North
| Specs | |||
|---|---|---|---|
| keel type: long |
hull: Steel |
hull section: S |

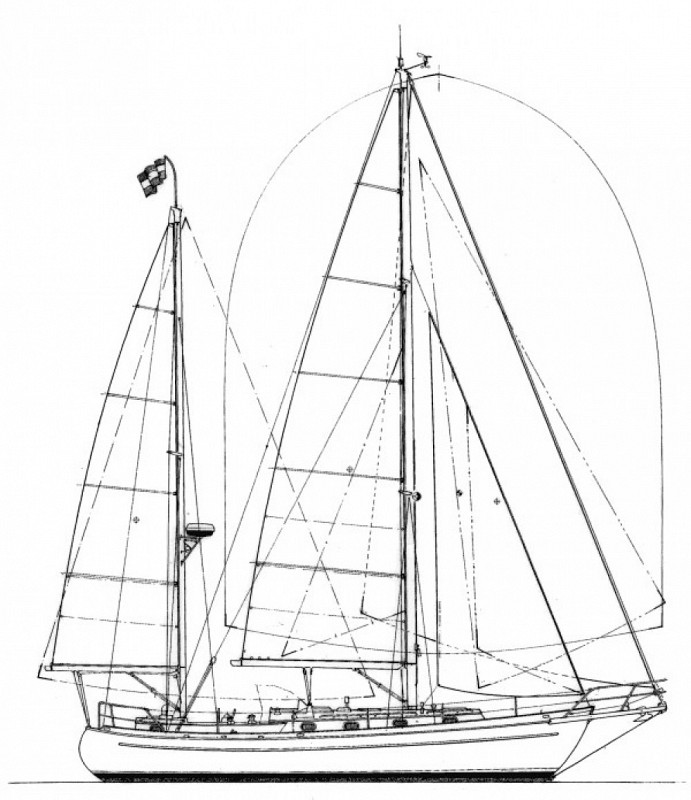

rig type: Ketch |
| pilot house : |
head room: 2.08 m |
# berths: 7 |
# heads: 1 |
| Dimensions | |||
|
length: 12.45 m |
loa: 14.18 m |
lwl: 10.63 m |
beam: 3.9 m |
| draft: 1.75 m |
displacement: 16.88 t |
ballast: 5300 kg. |
|
| Sails & Rig | |||
| sail area: 100.54 m 2 | E : 4.00 m | P : 13.95 m | I : 15.88 m |
| J : 6.00 m | PY :10.80 m | EY :3.10 m | IY :12.65 m |
| Engine | |||
| Mitsubishi O4D31T | power: 53 hp | ||
