(design no. 78a) Roaring forty
| Specs | |||
|---|---|---|---|
| keel type: short |
hull: Composite |
hull section: round |
rig type: sloop |
| pilot house : |
head room: 2.06 m |
# berths: 7 |
# heads: 2 |
| Dimensions | |||
|
length: 12.12 m |
loa: 12.35 m |
lwl: 10.33 m |
beam: 4 m |
| draft: 2.10 m |
displacement: 10.75 t |
ballast: 4250 kg. |
|

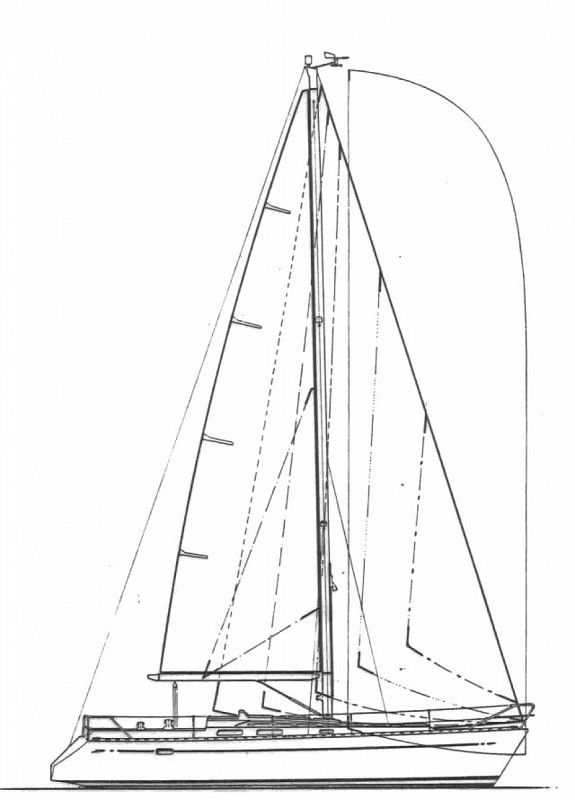

| Sails & Rig | |||
| sail area: 87.87 m 2 | E : 4.29 m | P : 16.50 m | I : 18.31 m |
| J : 4.96 m | |||
| Engine | |||
| Nanni N4.40 | power: 40 hp | ||
