(design no. 10) Hop-lite
| Specs | |||
|---|---|---|---|
| keel type: short |
hull: Wood |
hull section: round |

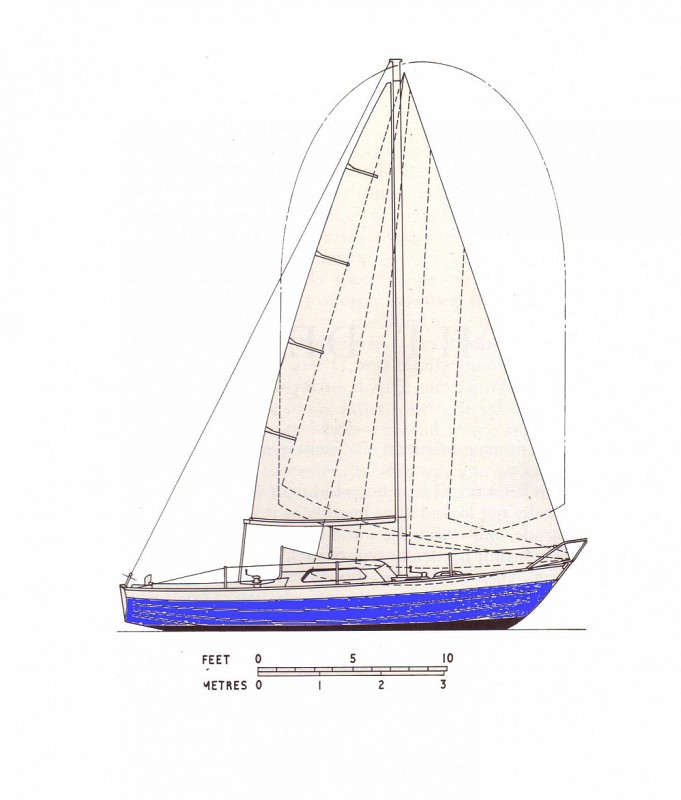

rig type: sloop |
| pilot house : |
head room: 1.4 m |

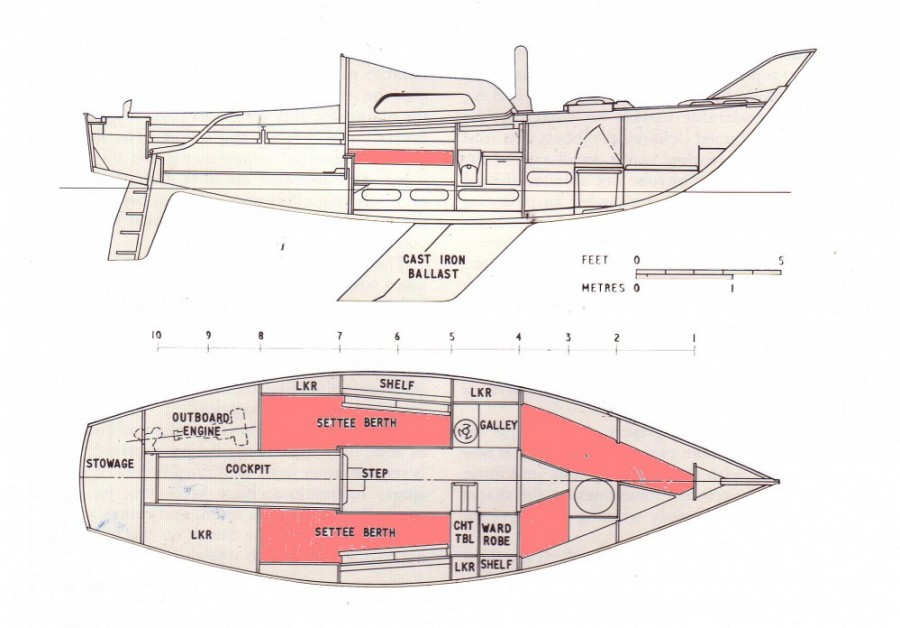

# berths: 4 |
# heads: 1 |
| Dimensions | |||
|
length: 7.40 m |
loa: 7.68 m |
lwl: 5.53 m |
beam: 2.3 m |
| draft: 1.19 m |
displacement: 1.45 t |
ballast: 600 kg. |
|
| Sails & Rig | |||
| sail area: 21.36 m 2 | E : 2.40 m | P : 7.13 m | I : 8.50 m |
| J : 2.72 m | |||
| Engine | |||
| out board | |||
