(design no. 56) Zeevink
| Specs | |||
|---|---|---|---|
| keel type: center board |
hull: Aluminium |
hull section: round |
rig type: Cutter |
| pilot house : |
head room: 1.91 m |
# berths: 7 |
# heads: 1 |
| Dimensions | |||
|
length: 10.15 m |
loa: 10.38 m |
lwl: 9.00 m |
beam: 3.4 m |
| draft: 0.63 - 2.07 m |
displacement: 5.84 t |
ballast: 2090 kg. |
|

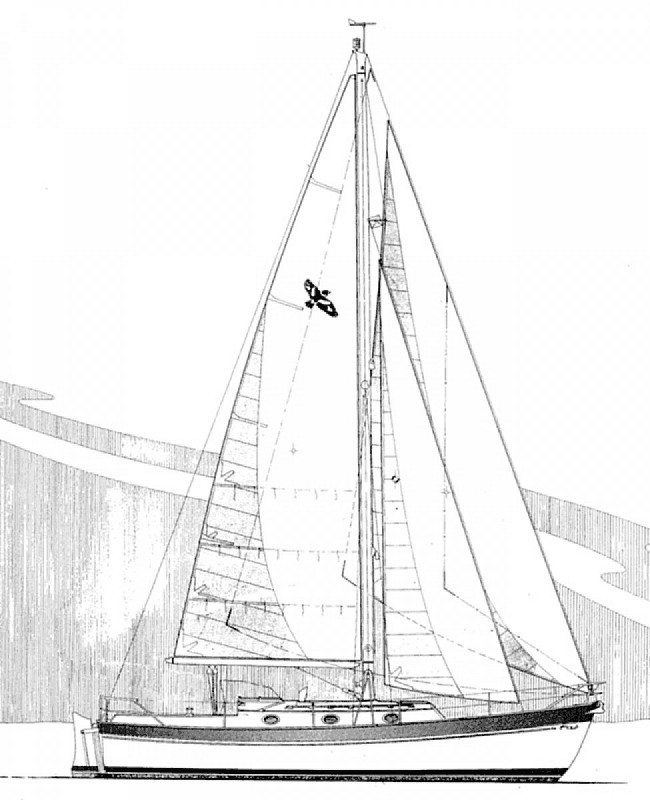

| Sails & Rig | |||
| sail area: 56.10 m 2 | E : 4.38 m | P : 11.88 m | I : 13.50 m |
| J : 4.50 m | |||
| Engine | |||
| Yanmar 3GM30 | power: 29.1 hp | ||
