(design no. 59) Curlew
| Specs | |||
|---|---|---|---|
| keel type: center board |
hull: Aluminium |
hull section: round |
rig type: sloop (frac) |
| pilot house : cuddy seats |
head room: 1.93 m |
# berths: 6 |
# heads: 1 |
| Dimensions | |||
|
length: 11.00 m |
loa: 11.12 m |
lwl: 9.95 m |
beam: 3.65 m |
| draft: 0.65 - 2.31 m |
displacement: 8.17 t |
ballast: 3400 kg. |
|

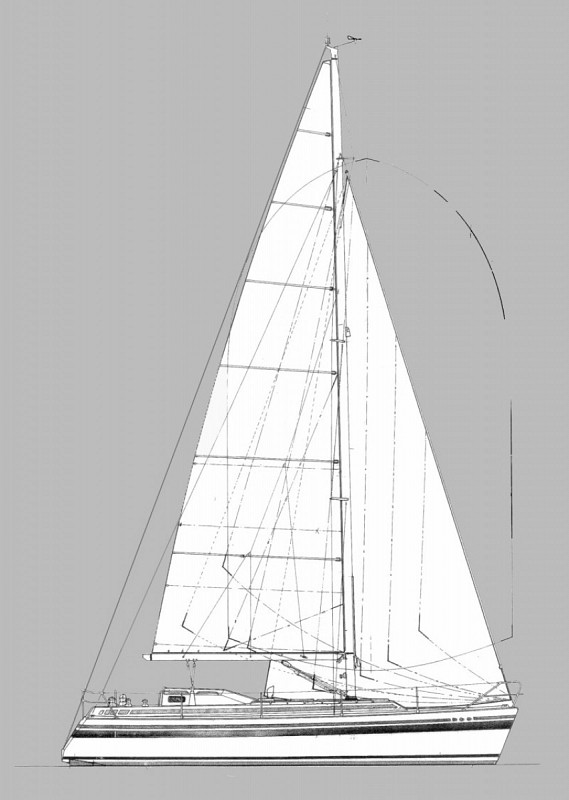

| Sails & Rig | |||
| sail area: 63.39 m 2 | E : 4.70 m | P : 14.20 m | I : 13.24 m |
| J : 3.80 m | |||
| Engine | |||
| Volvo Penta D2-55 | power: 39 hp | ||
