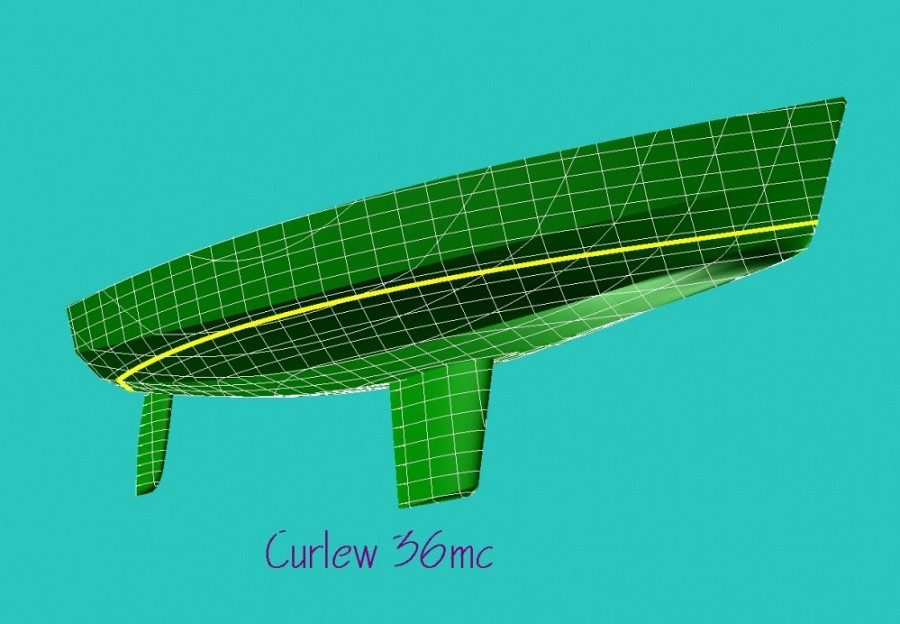

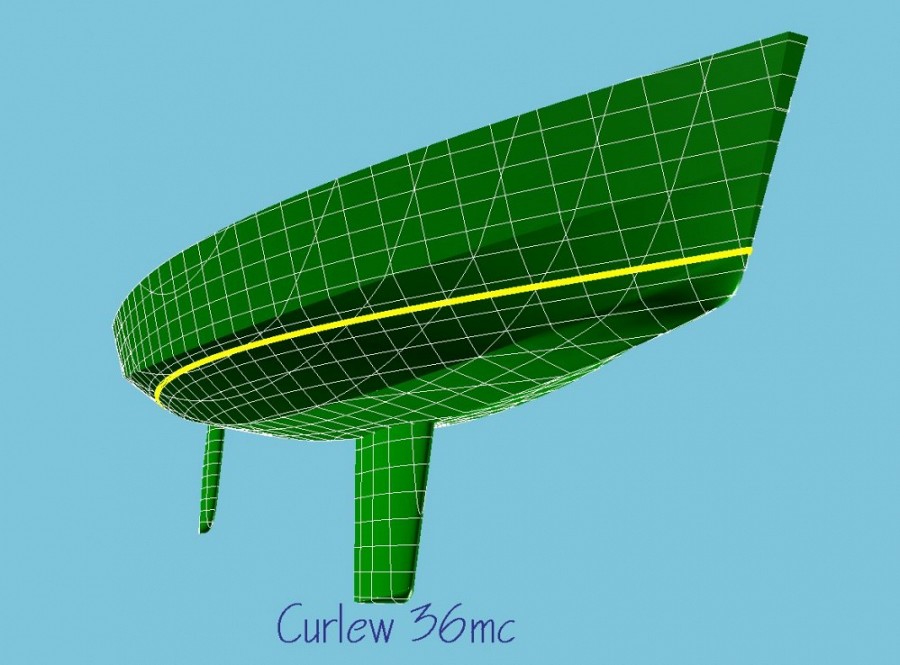

(design no. 59a) Curlew multi chine
| Specs | |||
|---|---|---|---|
| keel type: short |
hull: Aluminium |
hull section: hard chine |
rig type: cutter |
| pilot house : cubby seats |
head room: 1.93 m |
# berths: 6 |
# heads: 1 |
| Dimensions | |||
|
length: 10.97 m |
loa: 11.12 m |
lwl: 9.95 m |
beam: 3.65 m |
| draft: 9.99 m |
displacement: 8.15 t |
ballast: 3400 kg. |
|

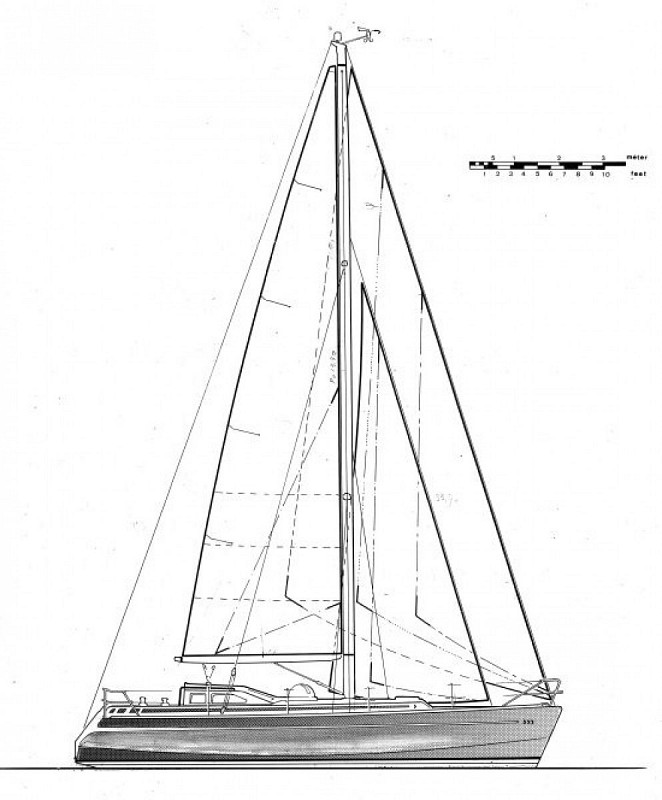

| Sails & Rig | |||
| sail area: 63.36 m 2 | E : 3.55 m | P : 13.55 m | I : 15.40 m |
| J : 4.15 m | |||
| Engine | |||
| Yanmar 3JH4C | power: 39 hp | ||
