(design no. 100) Harrier
| Specs | |||
|---|---|---|---|
| keel type: lifting |
hull: Composite |
hull section: round |
rig type: sloop |
| pilot house : Cubby seats |
head room: 2.2 m |
# berths: 8 |
# heads: 1 |
| Dimensions | |||
|
length: 13.45 m |
loa: 13.85 m |
lwl: 13.00 m |
beam: 4.88 m |
| draft: 0.95 - 2.70 m |
displacement: 6.5 t |
ballast: 2500 kg. |
|

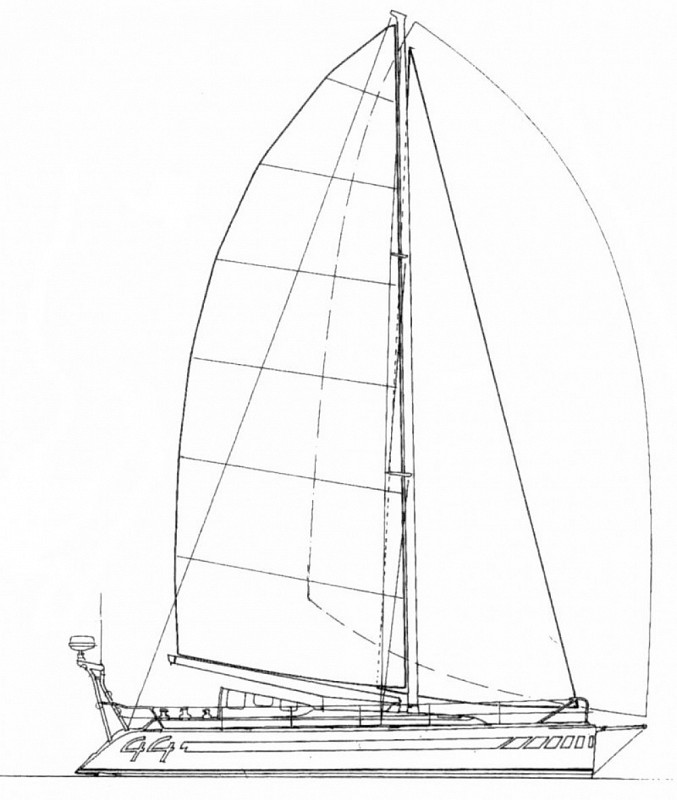

| Sails & Rig | |||
| sail area: 125.00 m 2 | E : 6.10 m | P : 17.15 m | I : 18.35 m |
| J : 4.35 m | |||
| Engine | |||
| Nanni N4.50 | power: 50 hp | ||
