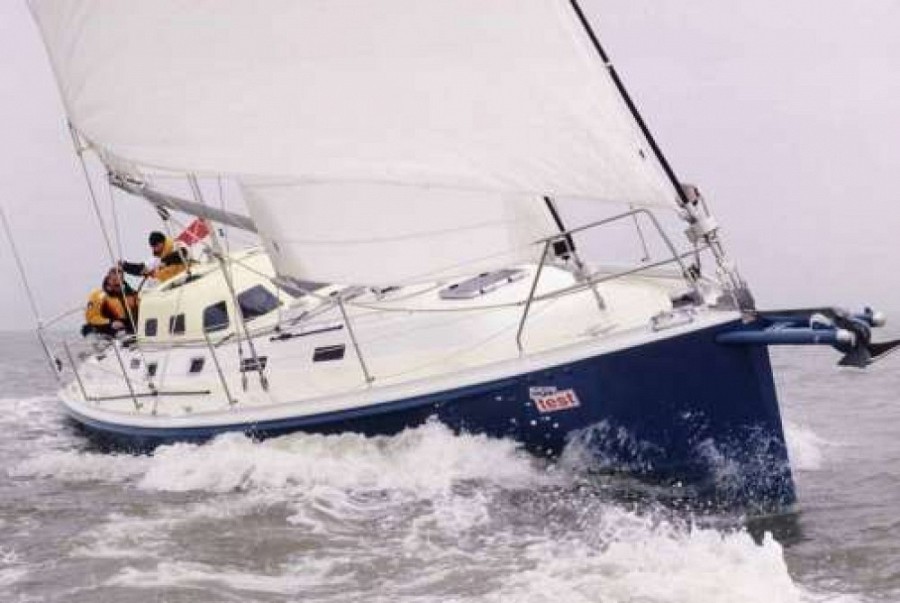

(design no. 15) Atlantic 38
German test (pdf): tewww.palstek.de/wp-content/uploads/2009/04/Atlantic_38.pdf
| Specs | |||
|---|---|---|---|
| keel type: center board |
hull: Alum |
hull section: round bilge |
rig type: cutter |
| pilot house : cubby seats |
head room: 2.24 m |
# berths: 6 |
# heads: 1 |
| Dimensions | |||
|
length: 11.58 m |
loa: 12.53 m |
lwl: 10.67 m |
beam: 3.95 m |
| draft: 1.24 - 2.39 m |
displacement: 8.8 t |
ballast: 3475 kg. |
|

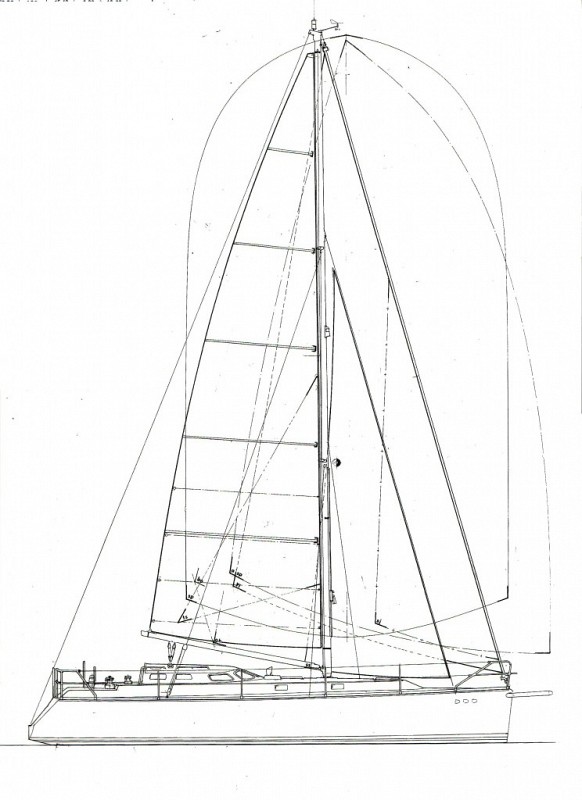

| Sails & Rig | |||
| sail area: 70.35 m 2 | E : 4.15 m | P : 14.20 m | I : 15.70 m |
| J : 4.30 m | |||
| Engine | |||
| Yanmar 3JH3E | |||
website: www.atlanticyachts.nl
