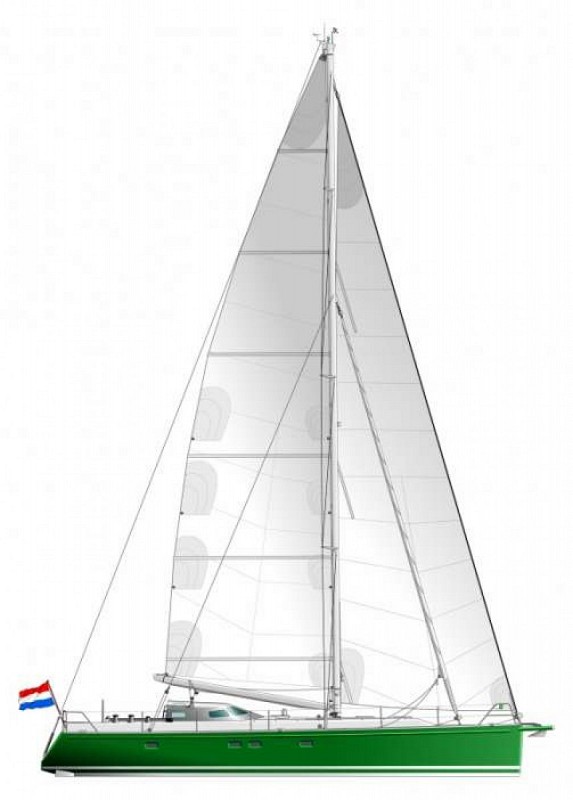

(design no. 122) Atlantic 48
Exclusive design for Atlantic yachts.
| Specs | |||
|---|---|---|---|
| keel type: lifting |
hull: Alum |
hull section: round bilge |
rig type: cutter |
| pilot house : cubby seats |
head room: 2.22 m |
# berths: 8 |
# heads: 2 |
| Dimensions | |||
|
length: 14.70 m |
loa: 15.86 m |
lwl: 13.78 m |
beam: 4.45 m |
| draft: 1.04 - 3.14 m |
displacement: 18.08 t |
ballast: 6000 kg. |
|
| Sails & Rig | |||
| sail area: 119.44 m 2 | E : 5.20 m | P : 19.33 m | I : 19.83 m |
| J : 5.42 m | |||
| Engine | |||
| steyer | |||
website: www.atlanticyachts.nl
